DPI Technology

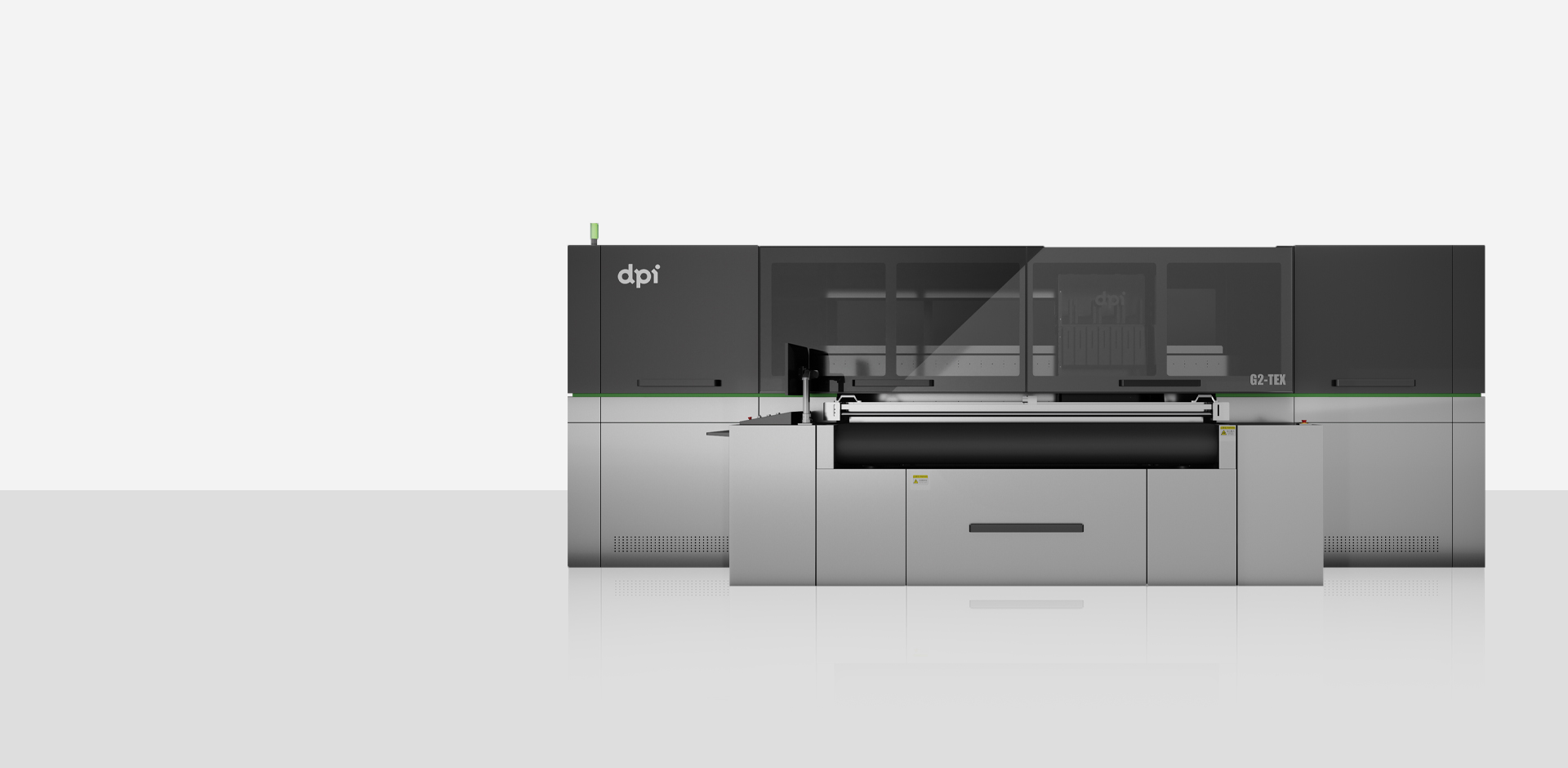

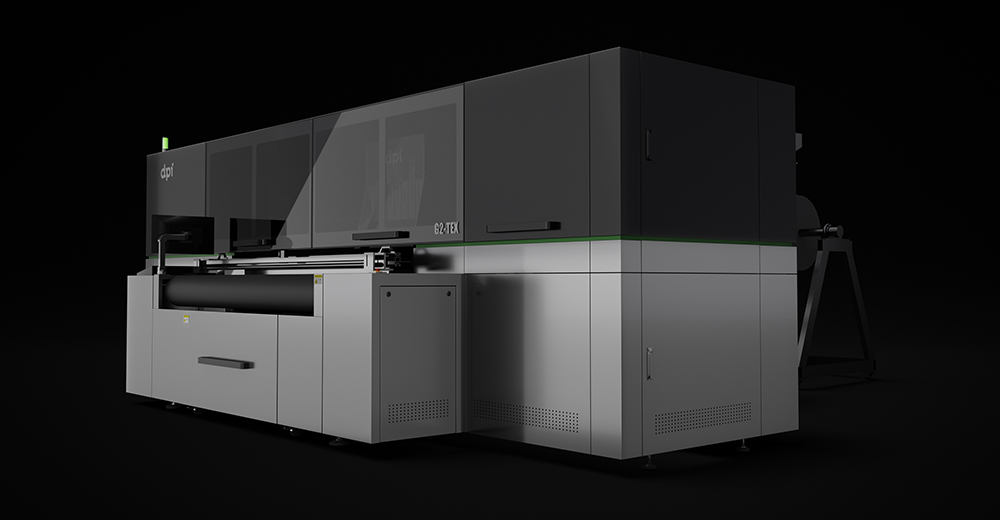

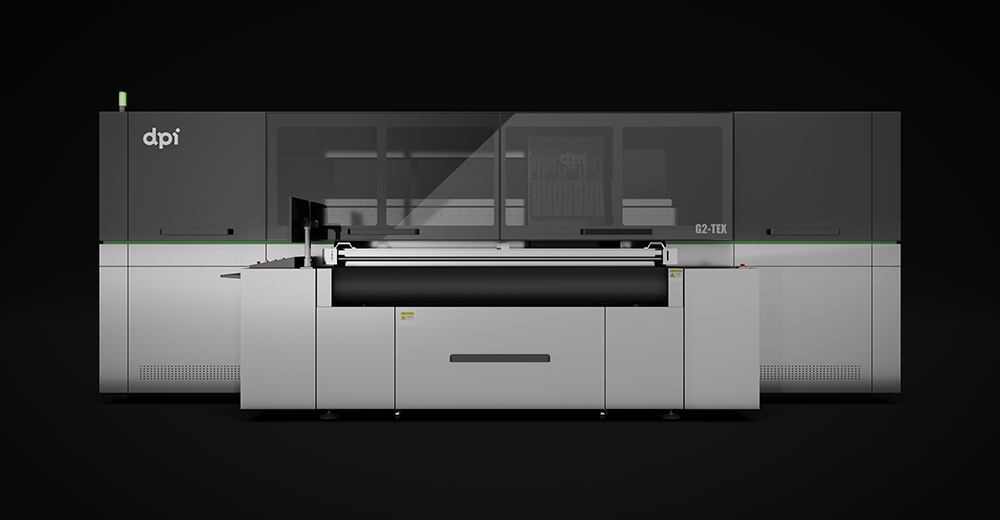

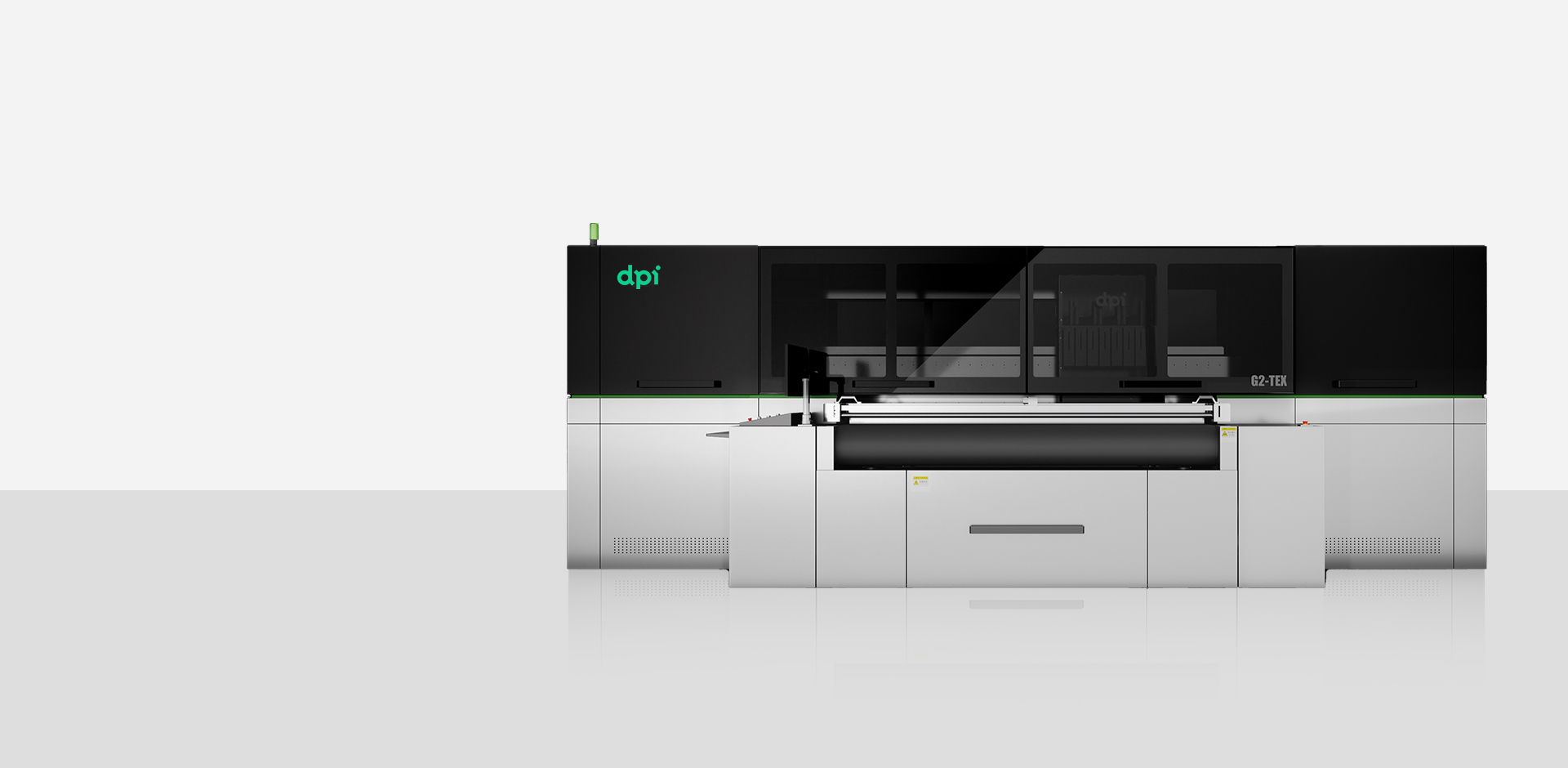

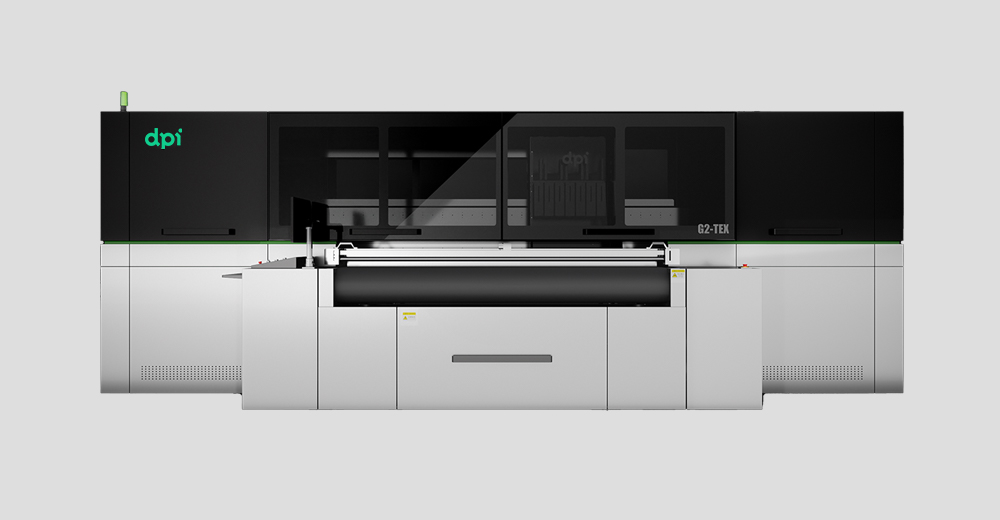

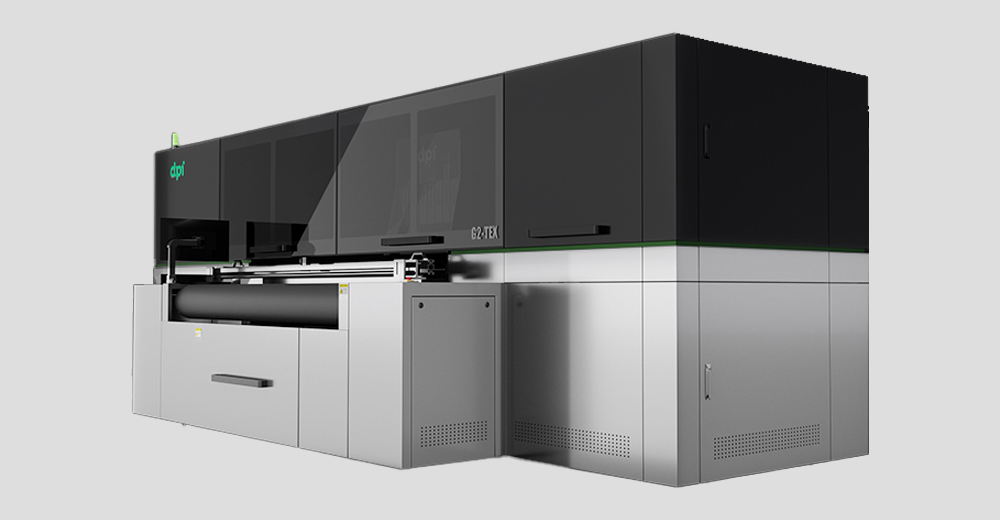

G2 L High Speed Industrial Digital Printer

Equipped with up to 48 print heads and supports a printing width of 2600 mm.

Compatible with multiple types of inks such as reactive, acid, disperse, and pigment ink.

Relying on the circulating ink path temperature control system, it accurately regulates ink temperature for stable printing colors.

Provides an efficient, stable industrial-grade digital printing solution for various fabrics, boosting production efficiency.

MAX. 48 PRINT HEADS
FLEXIBLY ADAPTABLE TO 8-12 COLOR CHANNELS

STABLY ACHIEVES 2600 MM PRINTING WIDTH
MEETING DIVERSE PRODUCTION NEEDS

UNIQUE INK SYSTEM
STABLY COMPATIBLE WITH MULTIPLE TEXTILE INKS

MULTIPLE PROTECTION DEVICES
MORE EFFECTIVELY PROTECT PRINT HEADS

INTELLIGENT OPERATION

SOFTWARE & ELECTRONIC CONTROL

INDUSTRIAL MECHANICAL DESIGN

INK SUPPLY SYSTEM

BELT WASHING SYSTEM

INTELLIGENT OPERATION

· Flexible queues management for continuous printing, unattended production
· Front/rear operation touch screen with interlock protection, easier and safety
· Real - time display of printing progress and ink prediction for dynamic full - process control.

SOFTWARE & ELECTRONIC CONTROL

· Unique feathering - mode import function to customize feathering files according to pattern
· Precise waveform - matching files ensure the consistency of pattern - output accuracy
· Tailor-made printing modes enable broader pattern output capabilities.

INDUSTRIAL MECHANICAL DESIGN

· Special design of the steel beam structure, reducing the risk of deformation of the beam
· High-precision transportation belt and transmission parts

INK SUPPLY SYSTEM

· Utilizes a completely ink circulating system and individual temperature control system of each bar to maintain ink fluidity at optimal levels.
· Precise negative - pressure control with bubble - elimination device ensures stable & smooth ink supply.

BELT WASHING SYSTEM

· Belt washing system with dual ink design and independent water supply and drainage
· Equipped with double brush rollers, sponge rollers, air blade, water-absorbing rollers and drying system, the system effectively ensures the stickiness of the belt
·The scraper's angle can be flexibly adjusted according to cleaning effect

Technical Specification

Model	*G2-32(48) / G2-48(412)*	*G2-32 L(48) / G2 L-48(412)*	*G2-32 XL(48) / G2 XL-48(412)*
No. of print head	32 ~ 48
Colors Channel	8~12
Max. printing width	2000 mm	2600 mm	3400 mm
Resolution	600~2400 dpi
Drop Volume	5~16
Fabrics	Various cotton, rayon, silk, polyester, etc.
Inks	Reactive, acid, disperse, pigment, etc.
