DPI Technology S.L.

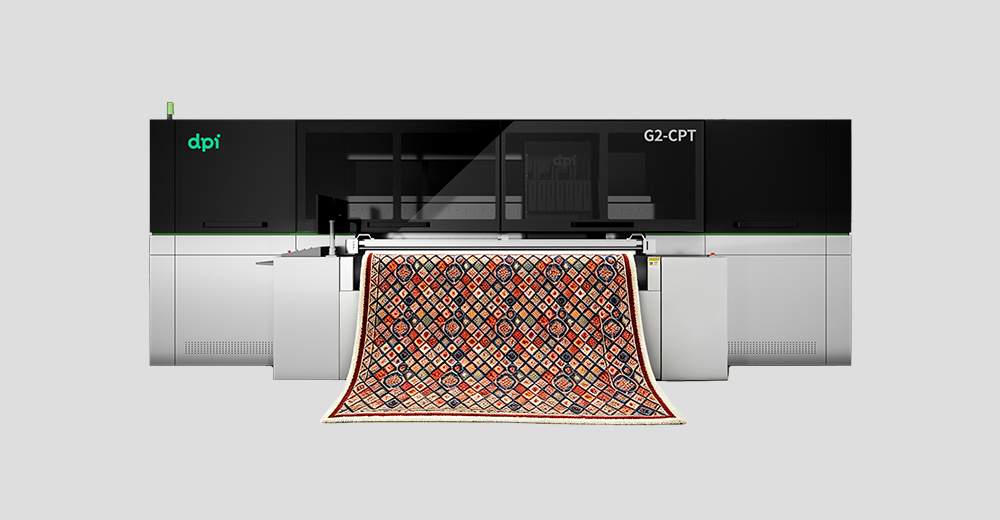

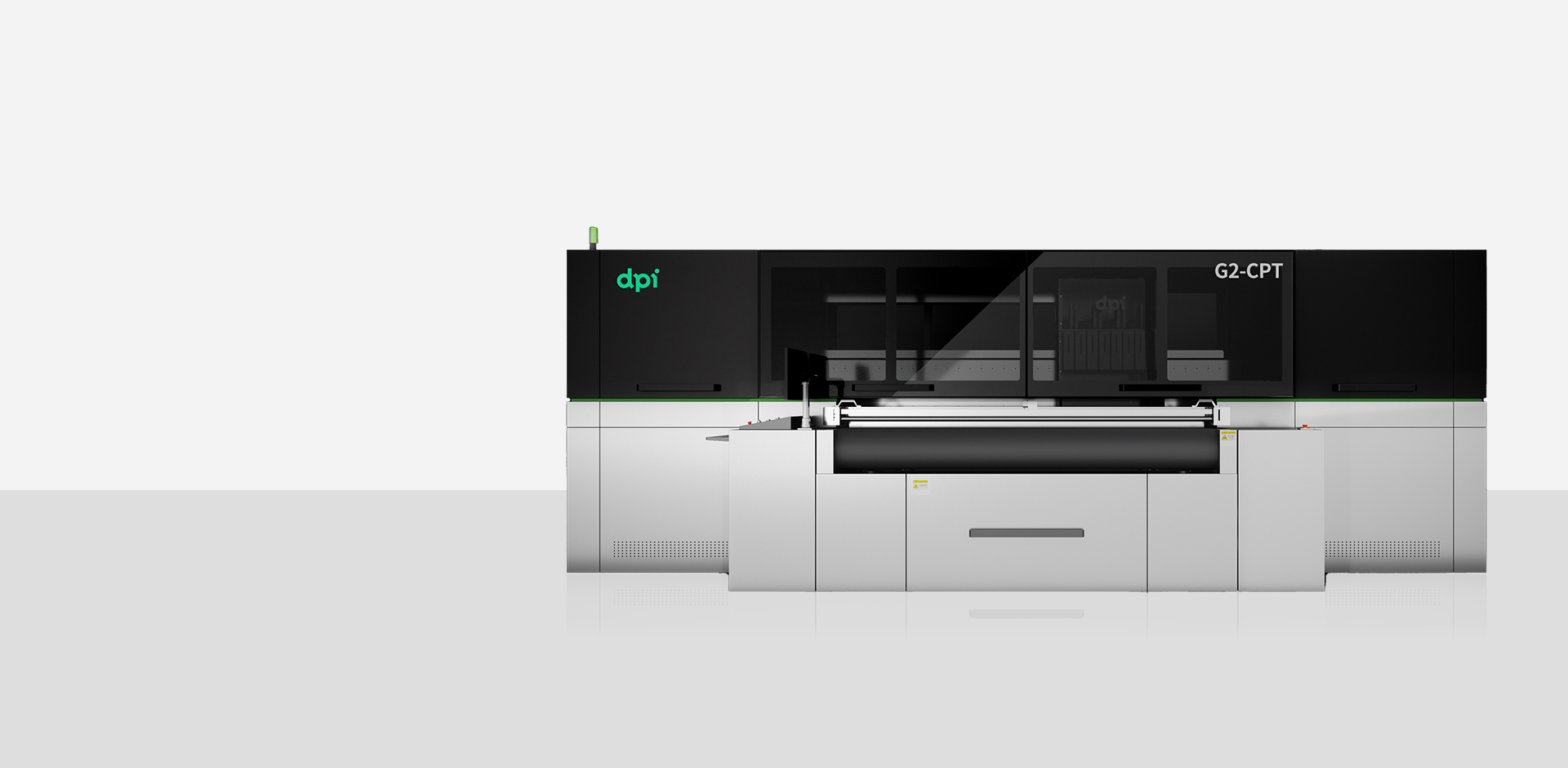

G2-CPT High Speed Digital Printer

Equipped with up to 64 print heads, available in 2600 / 3400 mm printing widths

and compatible with disperse inks.

The custom ink dilivery system for deep fiber penetration on pile fabrics.

It delivers efficient all-in-one printing for all carpets and heavy fabrics, boosting production efficiency.

MAX. 64 PRINT HEADS
CUSTOM DESIGNED FOR HEAVY FABRICS

EQUIPPED WITH CUSTOM INK DELIVERY SYSTEM
COMPATIBLE WITH DISPERSE INKS

DEEP PENETRATION INTO PILE FIBERS
UNIFORM COLORATION ACROSS FULL WIDTH

MULTIPLE PROTECTION DEVICES
MORE EFFECTIVELY PROTECT PRINT HEADS

INTELLIGENT OPERATION

SOFTWARE & ELECTRONIC CONTROL

INDUSTRIAL MECHANICAL DESIGN

INK SUPPLY SYSTEM

BELT WASHING SYSTEM

INTELLIGENT OPERATION

· Flexible queues management for continuous printing, unattended production
· Front/rear operation touch screen with interlock protection, easier and safety
· Real - time display of printing progress and ink prediction for dynamic full - process control.

SOFTWARE & ELECTRONIC CONTROL

· Unique feathering - mode import function to customize feathering files according to pattern
· Precise waveform - matching files ensure the consistency of pattern - output accuracy
· Tailor-made printing modes enable broader pattern output capabilities.

INDUSTRIAL MECHANICAL DESIGN

· Special design of the steel beam structure, reducing the risk of deformation of the beam
· High-precision transportation belt and transmission parts

INK SUPPLY SYSTEM

· Utilizes a completely ink circulating system and individual temperature control system of each bar to maintain ink fluidity at optimal levels.
· Precise negative - pressure control with bubble - elimination device ensures stable & smooth ink supply.

BELT WASHING SYSTEM

· Belt washing system with dual ink design and independent water supply and drainage
· Equipped with double brush rollers, sponge rollers, air blade, water-absorbing rollers and drying system, the system effectively ensures the stickiness of the belt
·The scraper's angle can be flexibly adjusted according to cleaning effect

Technical Specification

Model	G2	G2 XL
Print head	Dimatix SG1024
No. of print head	48 ~ 64
Colors Channel	6 ~ 8
Max. printing width	2600 mm	3400 mm
Resolution	400 ~ 1600 dpi
Drop Volume	7 ~ 160 pL
Fabrics	Blankets, Carpets, Plush and Flannel
Inks	Disperse Ink

*Bidrectional printing speed is for refernce only; the actual speed depends on on-site production performance. Specifications are subject to change due to upgrades, without prior notice. Drop size varies, resulting in corresponding differences in printing speed.
