DPI Technology

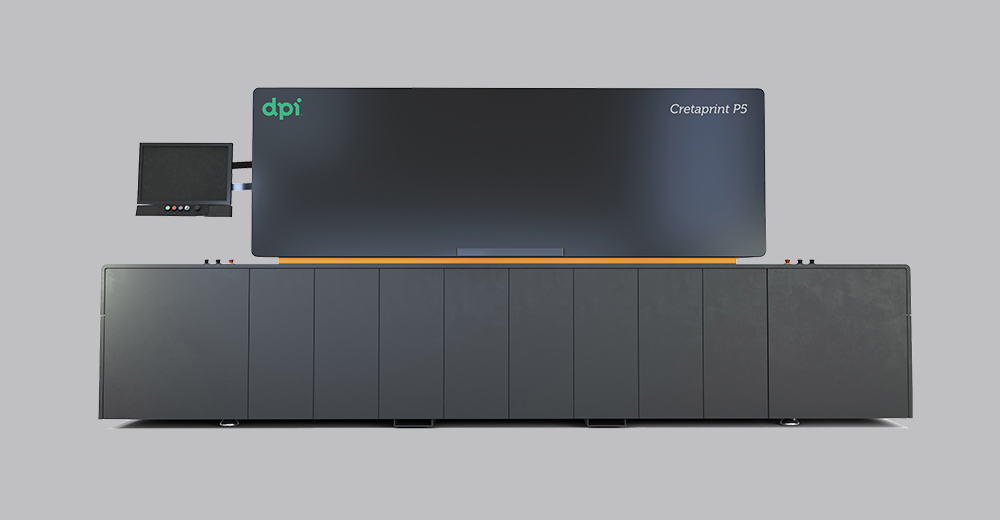

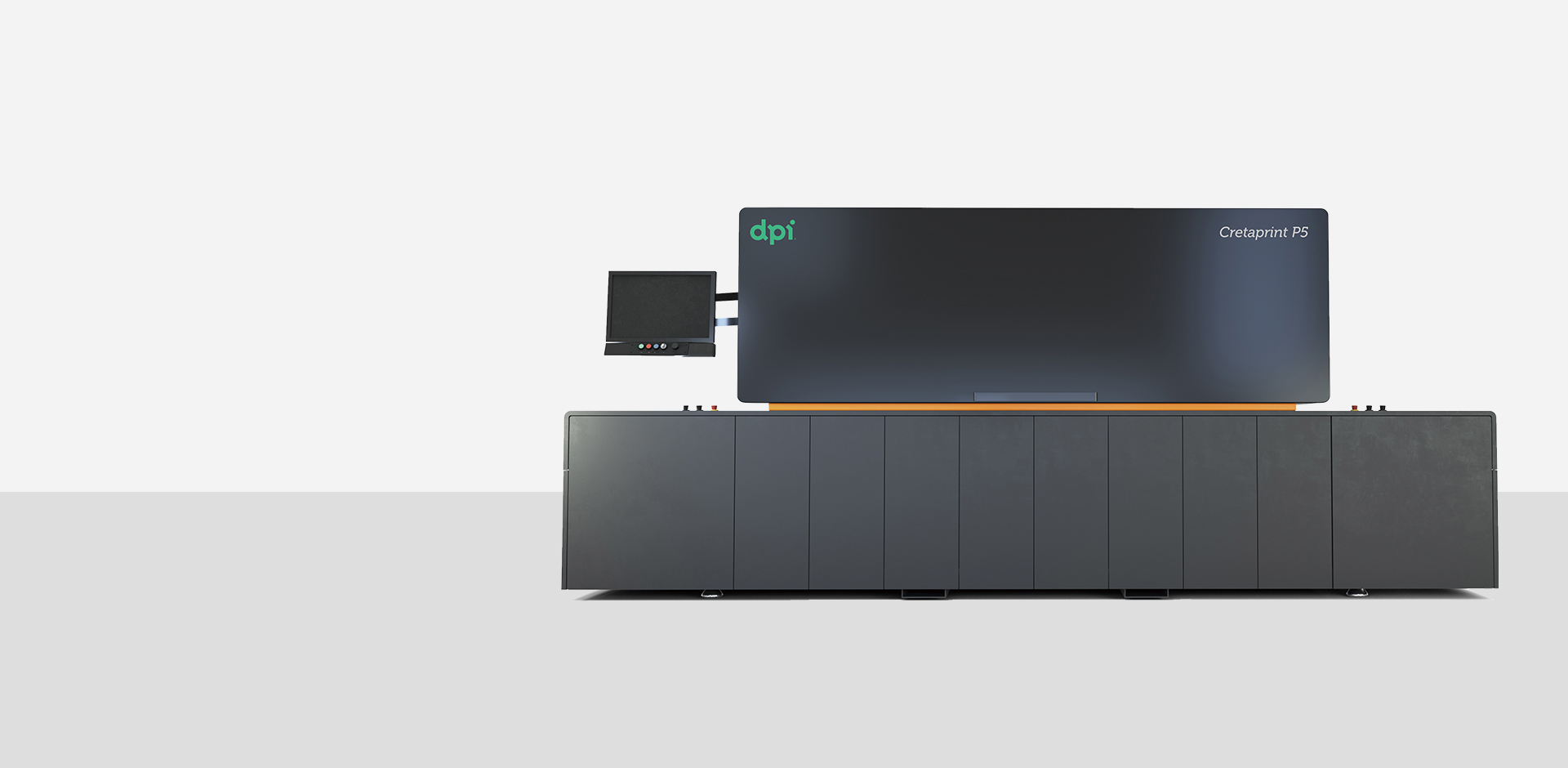

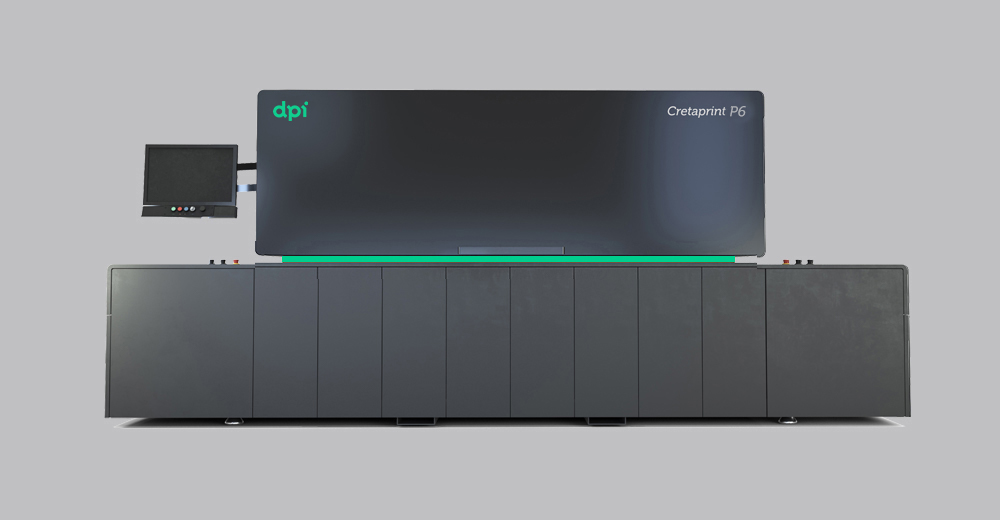

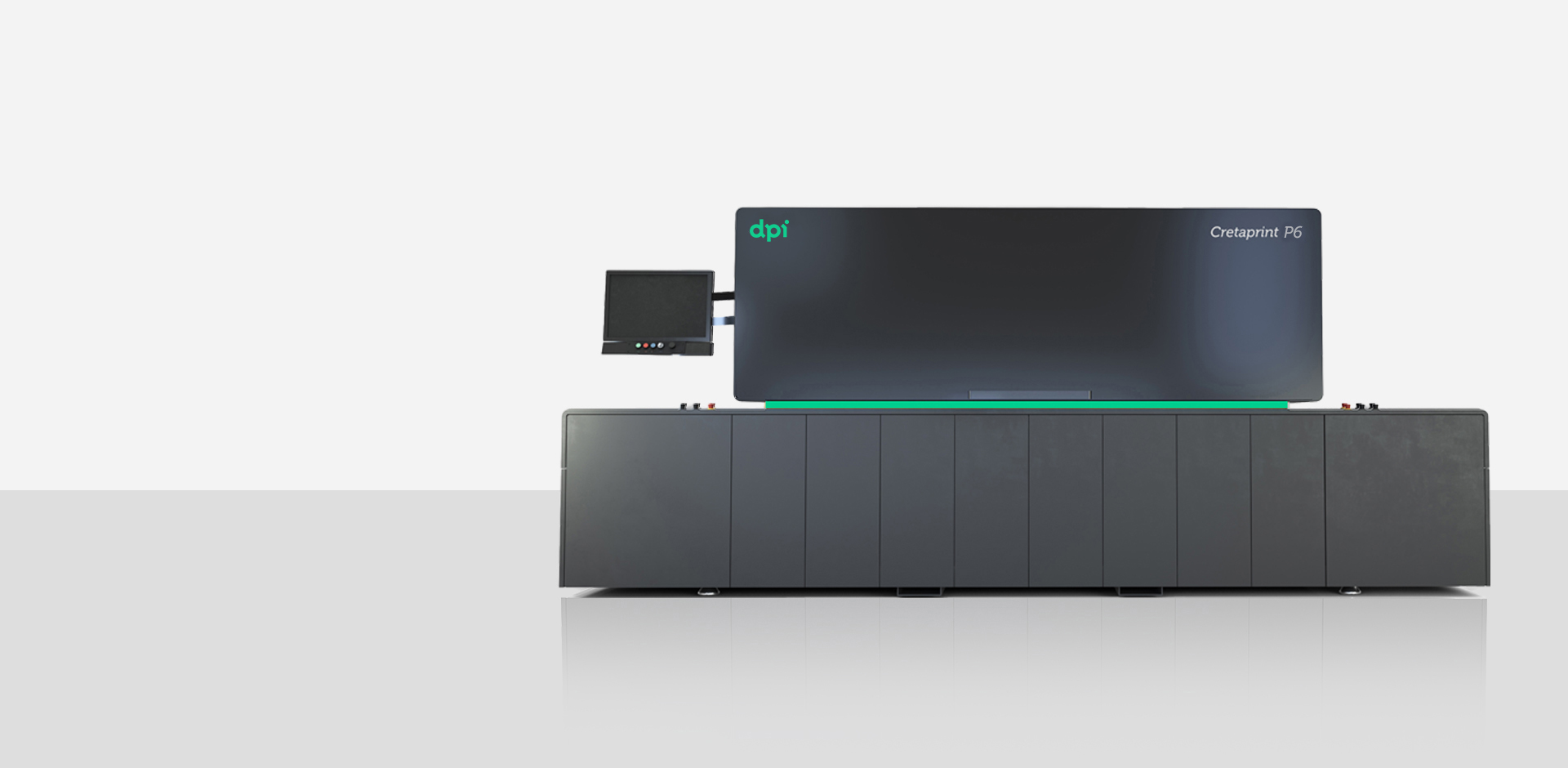

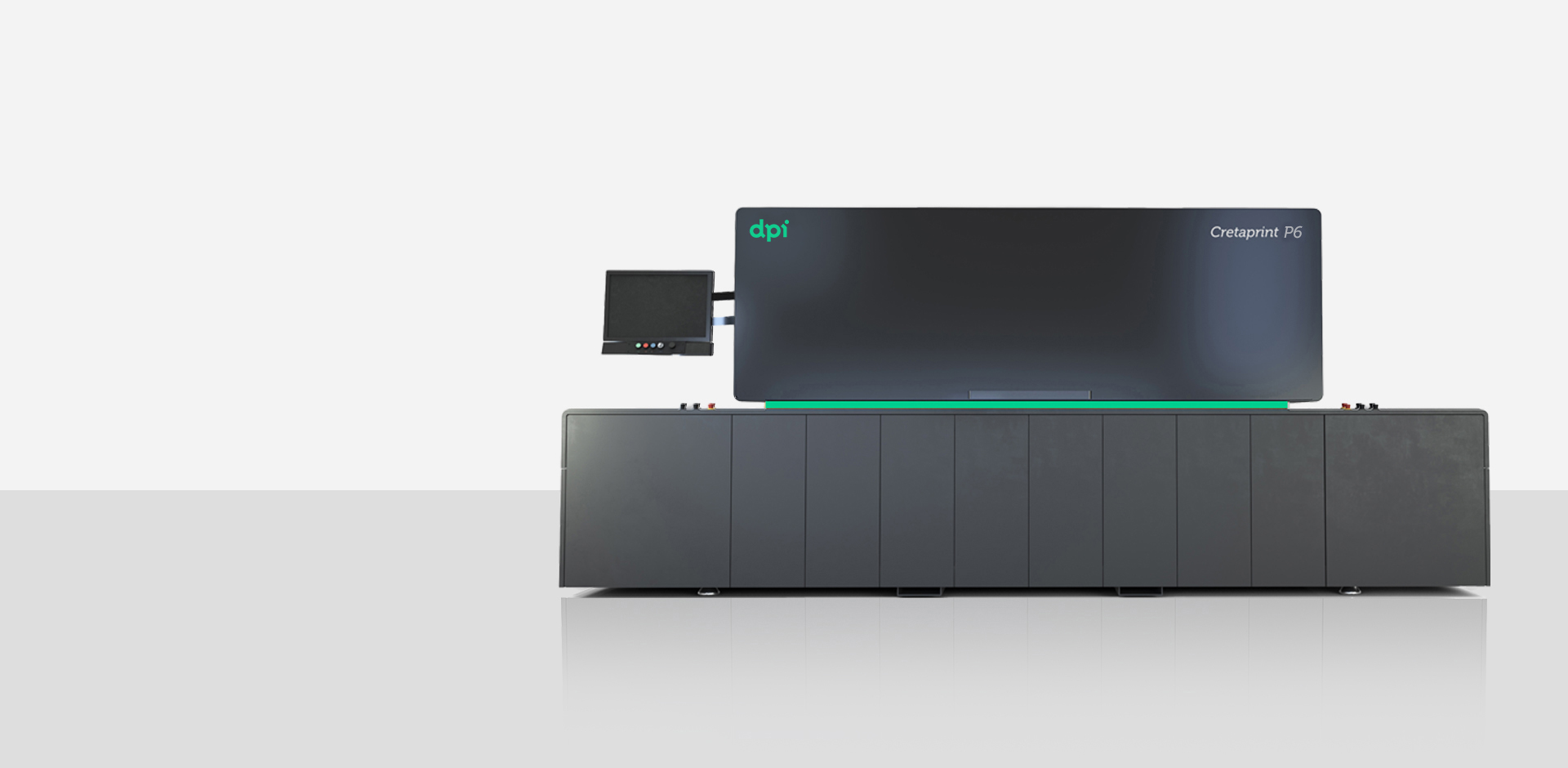

Digital Inkjet Printer

Engineered for modern production, it delivers precise results, quick changeovers, and vibrant colors in every batch.

Whether handling high-volume orders or customized designs, its flexible setup and dependable performance help you cut lead times and lower operating costs.

Boost productivity, reduce costs, and unlock new potential in ceramic printing.

SHARP, CRISP DETAILS
WITH CONSISTENT COLOR ACCURACY

FAST CHANGEOVERS
TO KEEP PRODUCTION FLEXIBLE

HANDLES BOTH HIGH-VOLUME RUNS
AND SMALL-BATCH PRODUCTION

STABLE PERFORMANCE
THAT REDUCES DOWNTIME

SUPERIOR PRINTING TECHNOLOGY

PRINTER WITH DIMATIX PRINTHEAD

PRINTER WITH SEIKO PRINTHEAD

EASY TO OPERATE

ADVANCING IN INDUSTRY 4.0

SUPERIOR PRINTING TECHNOLOGY

· Advanced printing technology designed to boost ceramic production efficiency.
· High-precision printhead mounting minimizes adjustments, saving time and labor.
· Optimized ink-delivery system supports high-productivity printheads with full circulation, zero sediment, and stable output.
· Continuous bidirectional communication with printheads enables intelligent automation, reducing manual intervention for more efficient production.

PRINTER WITH DIMATIX PRINTHEAD

· Optimized ink-path temperature control ensures stable flow and consistent output.
· High-speed data transmission delivers fast, high-precision printing.
· Independent cooling keeps printheads stable under heavy workloads.
· Dimatix-engineered ink-delivery system boosts durability and steady performance.
· Modular design simplifies maintenance and lowers service costs.

PRINTER WITH SEIKO PRINTHEAD

· A cost-effective, high-quality printhead delivering stable, long-term performance.
· High-speed output with consistent quality to boost productivity.
· Wide droplet range for both precision printing and large ink output.
· Adjustable printhead height for smooth handling of irregular or relief products.

EASY TO OPERATE

· Industry-first TAS on-the-fly color adjustment system delivers pinpoint color control.
· Multilingual touchscreen simplifies operation with one-tap access to core functions, print channels, and transport systems.
· Real-time job alerts help maintain smooth, efficient production.

ADVANCING IN INDUSTRY 4.0

· Standard Modbus interface enables SCADA and PLC access to printer data for transparent, controllable production.
· Supports multi-printer linkage and synchronization for efficient line collaboration and smart factory upgrades.
*Linked devices must support the linkage function.

Technical Data

Machine Specifications	C5	D5	M5	N5	P5	P5+	SHIELD
Max printing width	710 mm	710 mm	1138 mm	1138 mm	1440 mm	1440 mm	1440 mm
No. of inks	Up to 8	Up to 12	Up to 8	Up to 12	Up to 8	Up to 12	Up to 2
Print direction	Right / Left
Min. tile thickness	From 0.12 in (3 mm)
Max. tile thickness	30 mm				60 mm
Print speed	Up to 196.85 ft/min ( 60 m/min)
Centering printing precision	0.012 in (< 0.3 mm)

Printheads Data

Printhead type	Seiko RC 1536	Seiko RC 1536 · L	Epson e·D5	Epson e·Q5	Epson e·G5	Dimatix SG 1024 MC	Dimatix SG 1024 HFL
Printhead width	4.26 in (108.3 mm)					2.55 in (64.96 mm)
No. of nozzles	1536					1024
Native resolution	360 dpi					400 dpi
Drop size (pL)	13-98	25-225	23-100	13-100	25-225	22-80	80-200
Grayscale levels	UP to 8	UP to 10	UP to 5	UP to 8	UP to 11	UP to 4	UP to 4
Firing frequency (KHz)	Up to 37	Up to 37	Up to 41	Up to 37	Up to 41	Up to 35	Up to 20
gr/㎡ @25 m/min	Up to 45	Up to 85	Up to 55	Up to 45	Up to 85	Up to 41*	Up to 68*

*With specific Ceramics ink
