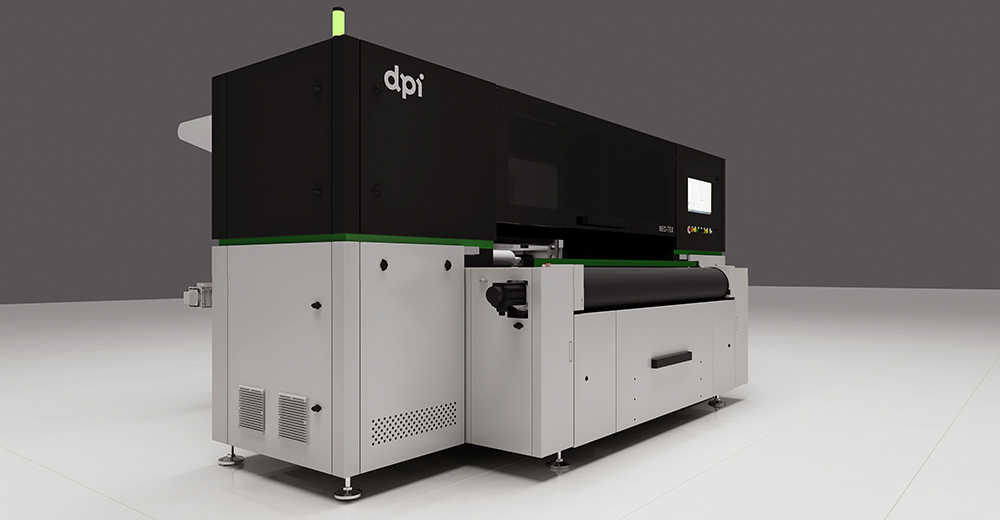

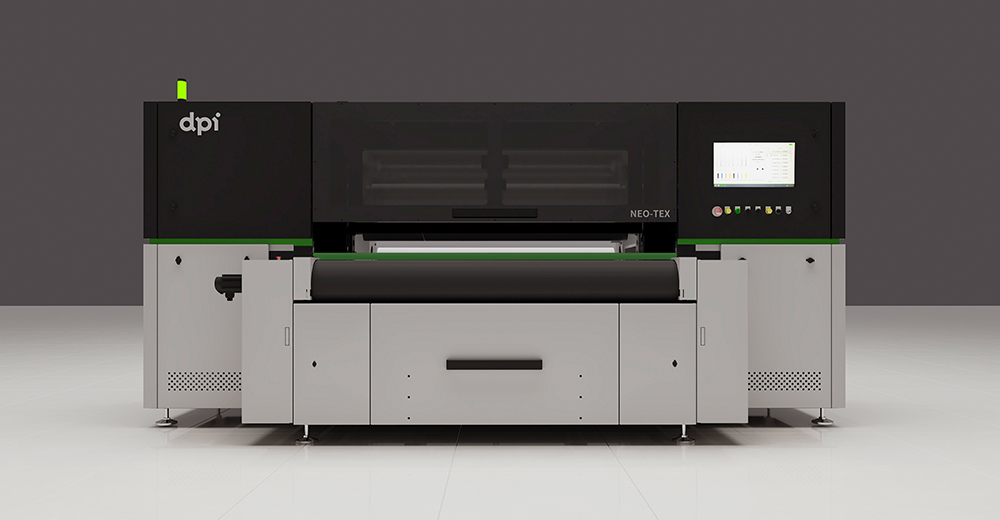

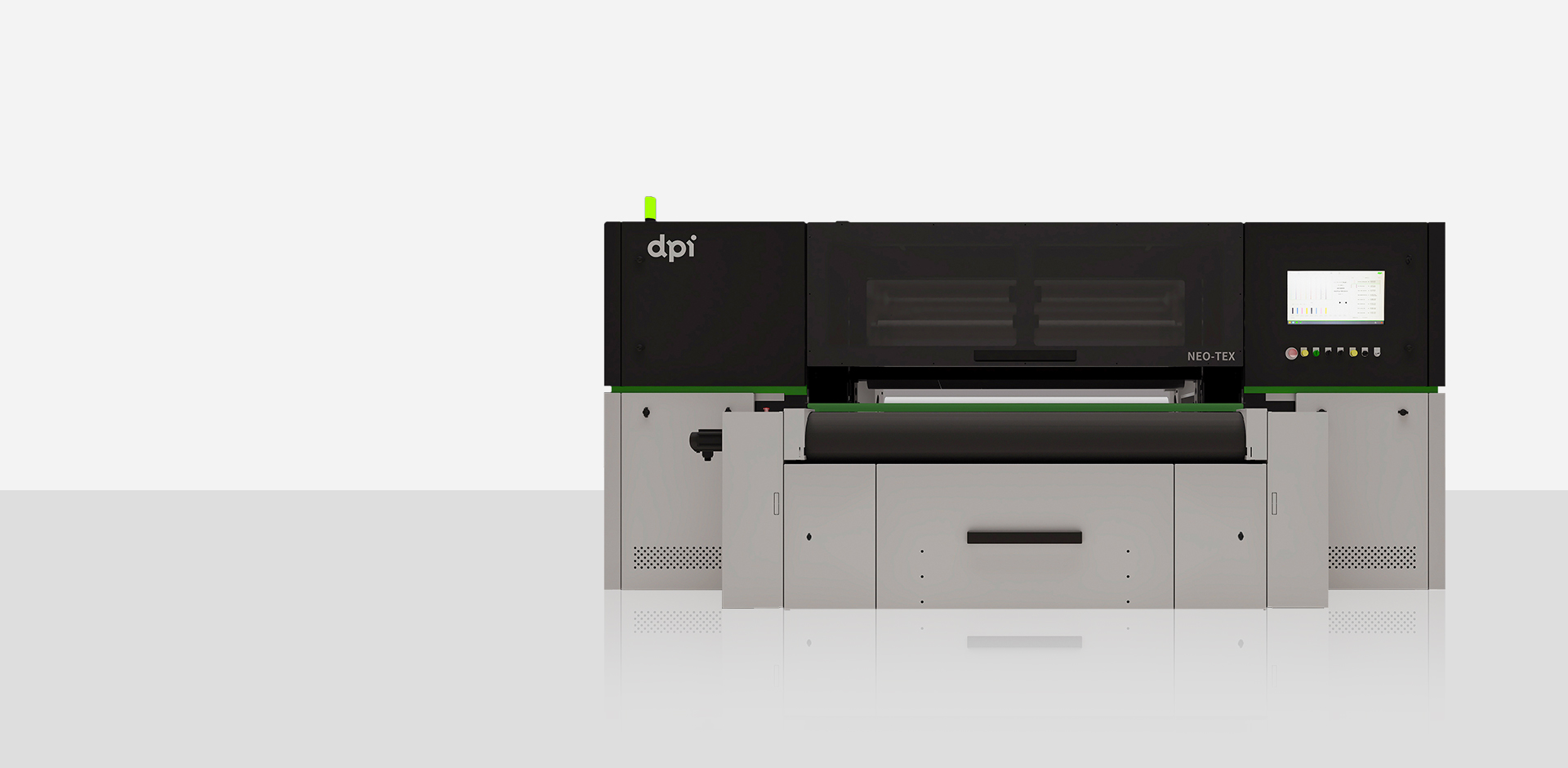

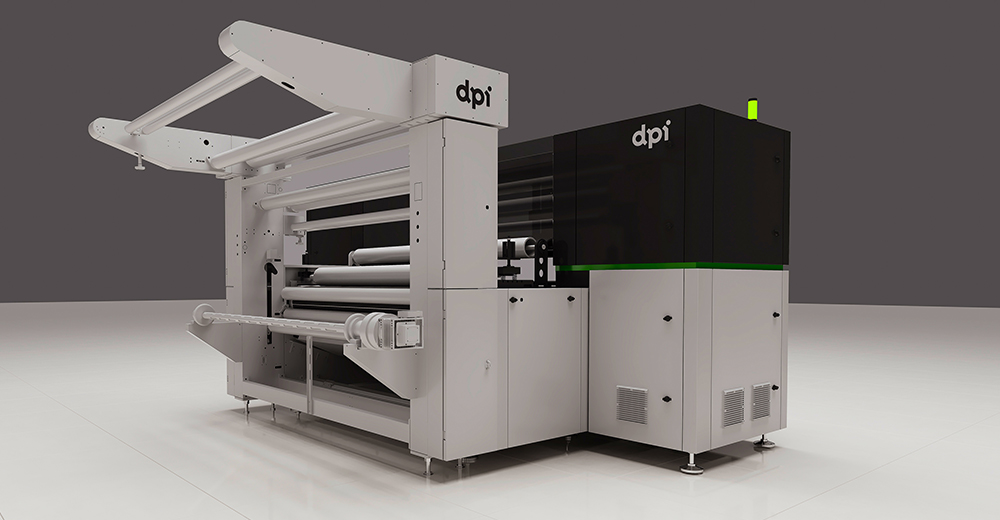

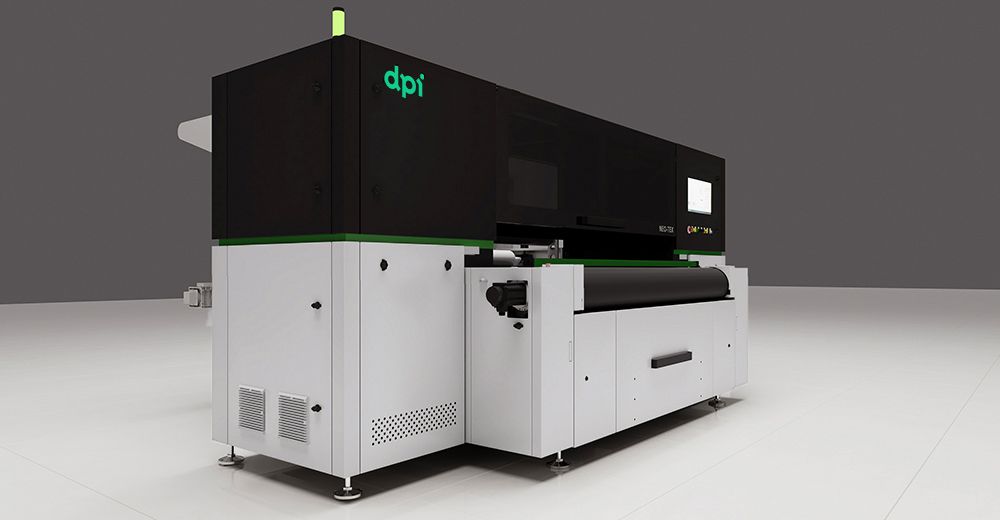

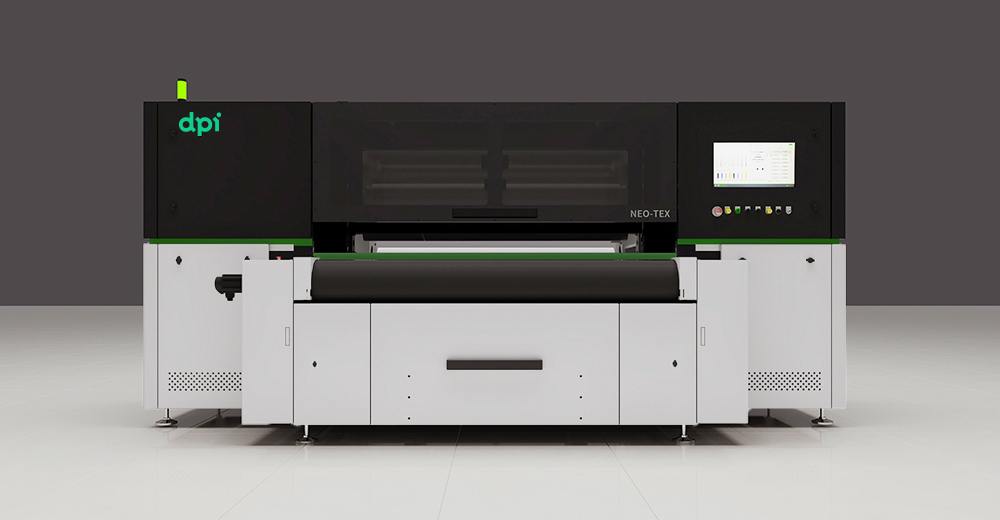

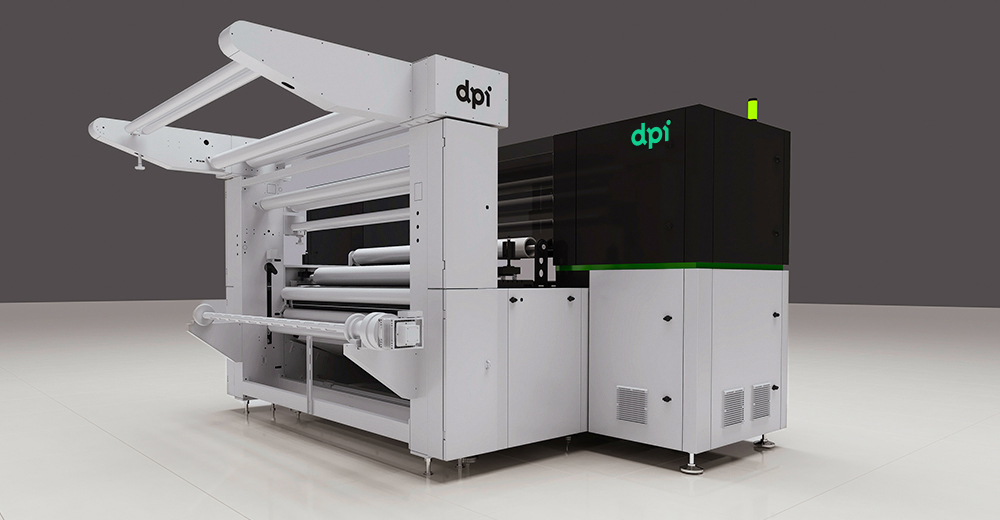

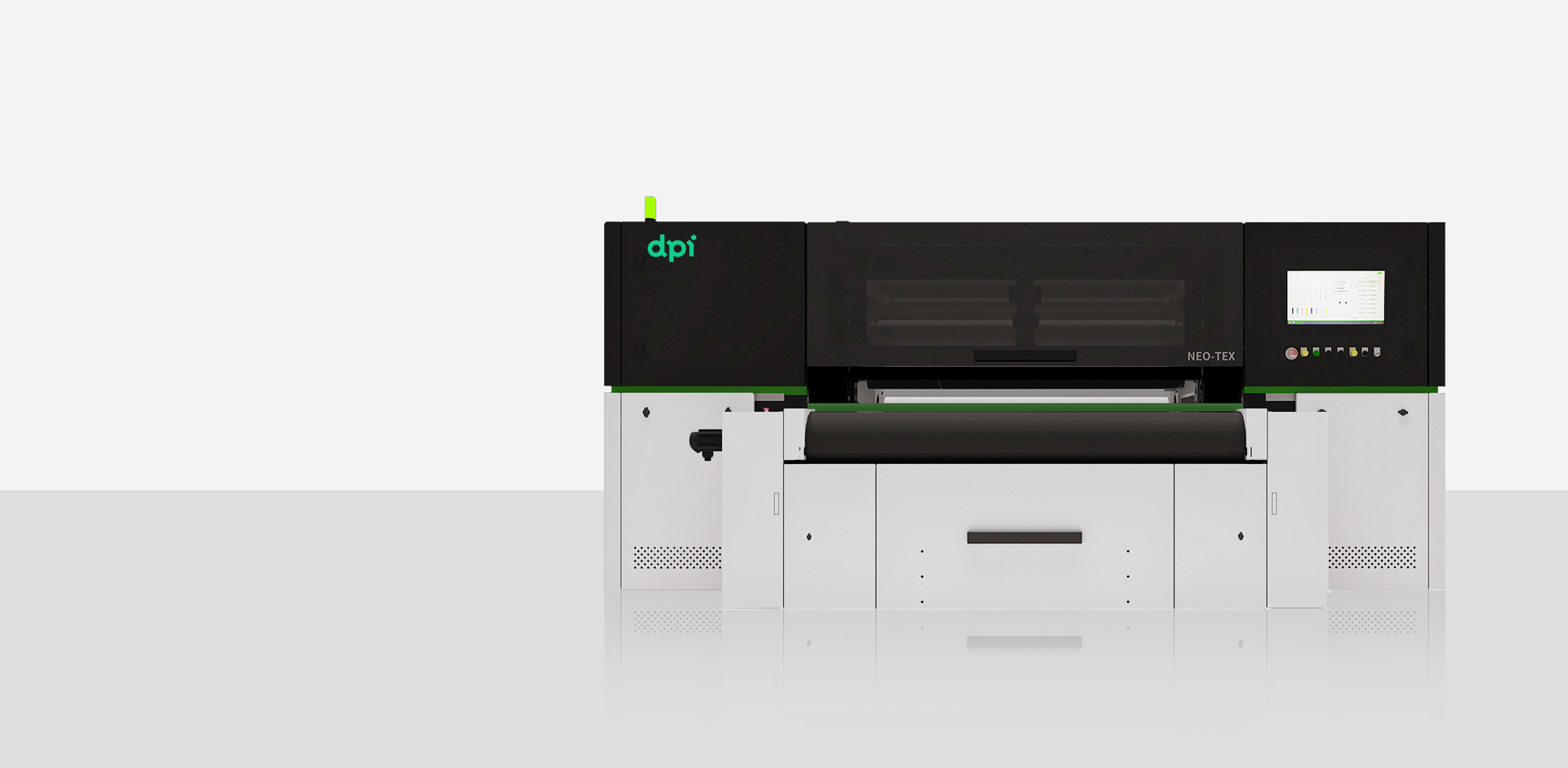

NEO-TEX High Speed Digital Printer

Equipped with up to 32 print heads and supports a printing width of 1800 / 2200 mm.

Compatible with multiple types of inks such as reactive, acid, disperse, and pigment ink.

Relying on the circulating ink path temperature control system, it accurately regulates ink temperature for stable printing colors.

Provides an efficient, stable industrial-grade digital printing solution for various fabrics, boosting production efficiency.

MAX 32 PRINT HEADS
FLEXIBLY ADAPTABLE TO 6/8 COLOR CHANNELS

STABLY ACHIEVES 1800 / 2200 MM PRINTING WIDTH
MEETING DIVERSE PRODUCTION NEEDS

UNIQUE INK SYSTEM
STABLY COMPATIBLE WITH MULTIPLE TEXTILE INKS

SHORT-FRAME STRUCTURE
SPACE-SAVING & EASY TO TRANSPORT

INTELLIGENT OPERATION

SELF-DEVELOPED PRINTING SOFTWARE

INDUSTRIAL MECHANICAL DESIGN

INK SUPPLY SYSTEM

BELT WASHING SYSTEM

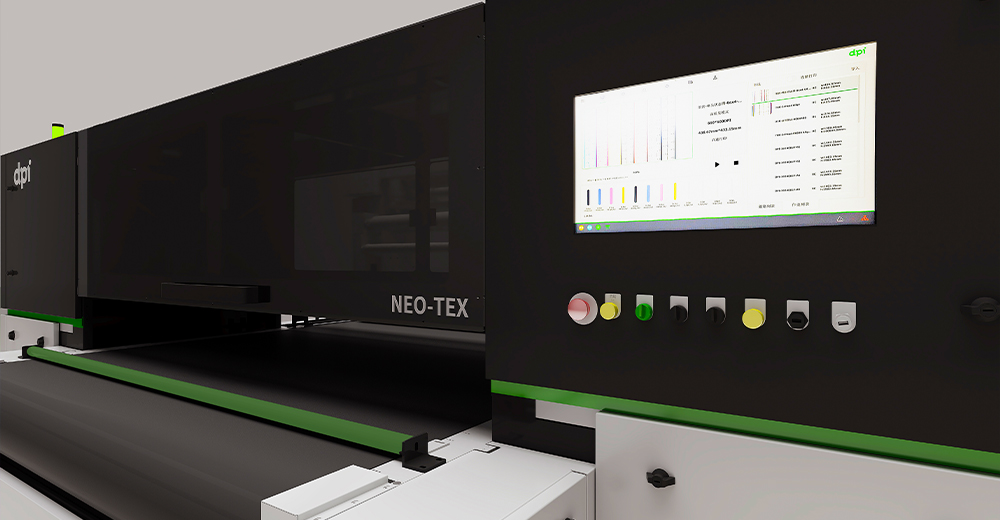

INTELLIGENT OPERATION

· Intelligent queue management: 7×24 non-stop production, no manual pattern switching.
· Equipped with front/rear operation touch screen for flexible operation from either side of the device.
· Interlock protection prevents misoperation shutdowns.
· Real-time tracking: Progress & ink prediction for full control.

SELF-DEVELOPED PRINTING SOFTWARE

- Unique feathering mode import: Intelligently customizes feathering files, enhancing natural pattern edge transitions.
- Precision waveform matching: Ensures consistent pattern color output, reducing rework rates.
- Simplified workflow adapts to diverse needs: One-click start, real-time production progress tracking.

INDUSTRIAL MECHANICAL DESIGN

· Special steel beam structure reduces deformation risk, ensuring stable operation and longer service life.
· High-precision transportation belt & parts: consistent printing accuracy, fewer defects.

INK SUPPLY SYSTEM

· Full-circulation ink supply system + independent temperature control keeps ink flowing smoothly at all times.
· Precise negative pressure control and bubble-elimination device ensure stable, uninterrupted ink supply for efficient printing.

BELT WASHING SYSTEM

· Independent dual-tank design supports separate water intake/drainage for flexible cleaning process control.
· Dual sponge rollers integrate power & auto - squeezing, ensure cleaning efficiency & effect.
· The scraper's angle adjusts flexibly for cleaning, ensuring a clean, residue-free belt and more precise subsequent printing.

Technical Specification

Model	NEO	NEO L
Print head	Kyocera KJ4B EX600
No. of print head	24 ~ 32
Colors channel	6 ~ 8
Max. printing width	1800 / 2200	2800 mm
Resolution	600 ~ 2400 dpi
Drop volume	5 ~ 16 pL

*Bidrectional printing speed is for refernce only; the actual speed depends on on-site production performance.

Specifications are subject to change due to upgrades, without prior notice. Drop size varies, resulting in corresponding differences in printing speed.
