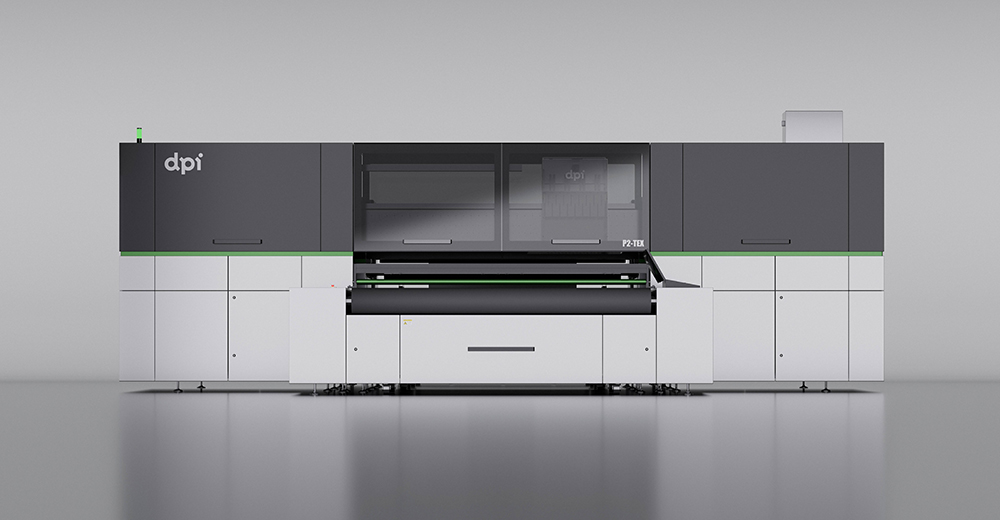

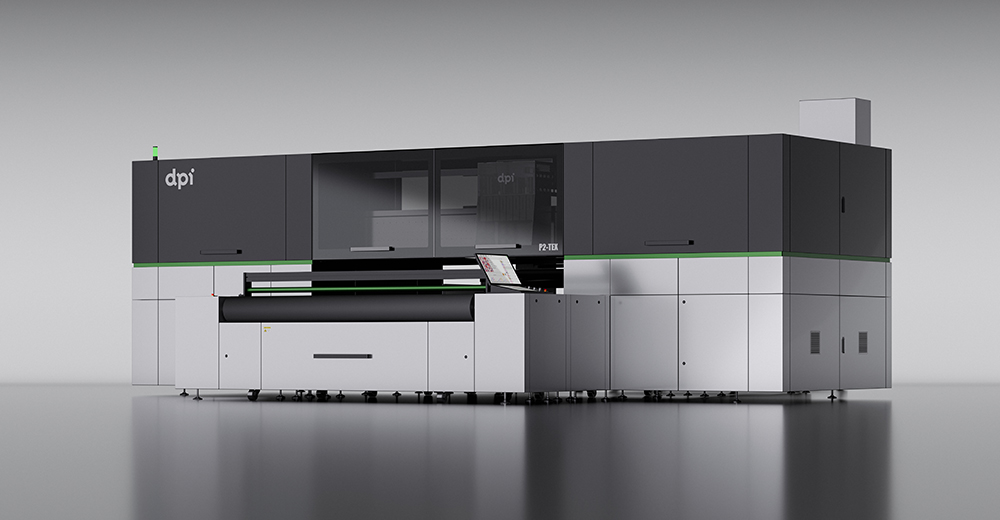

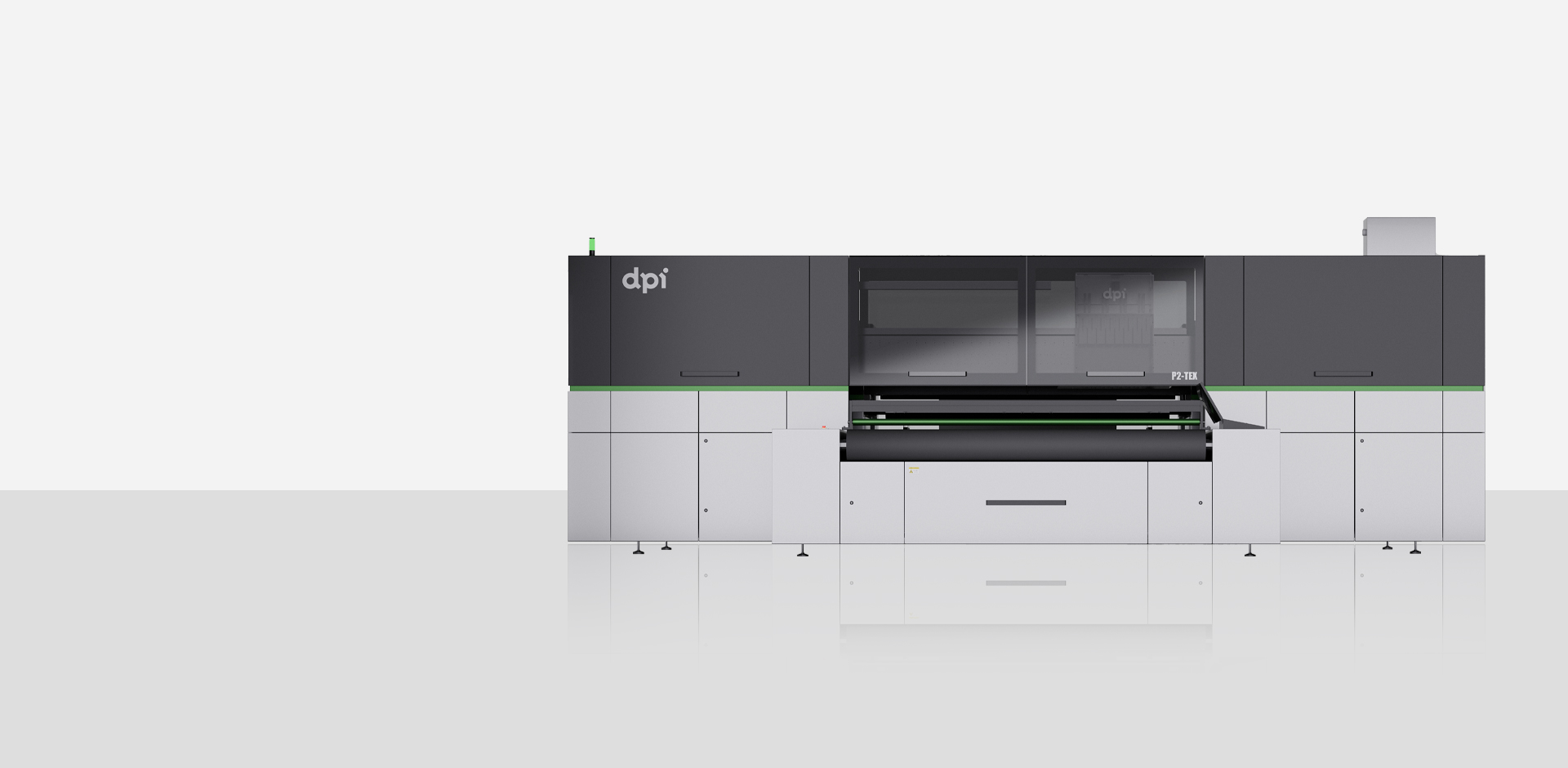

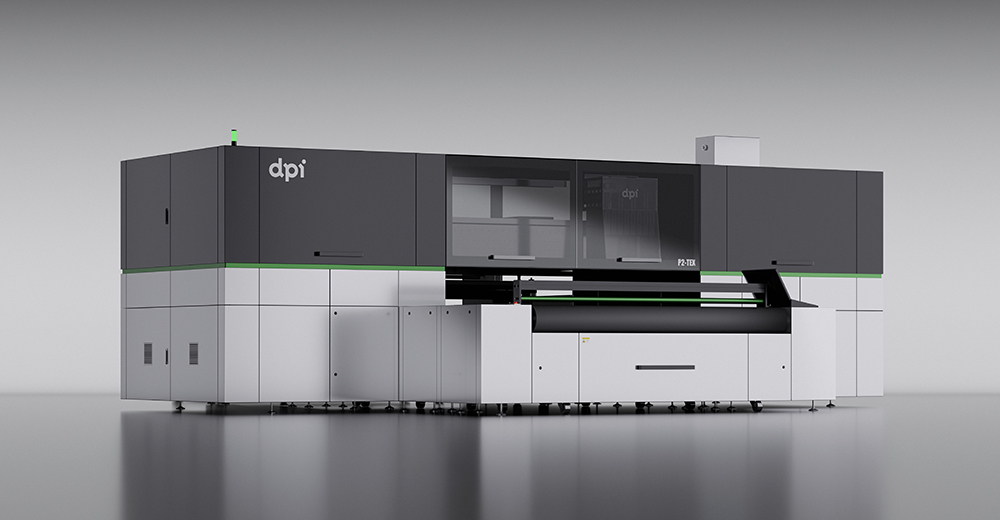

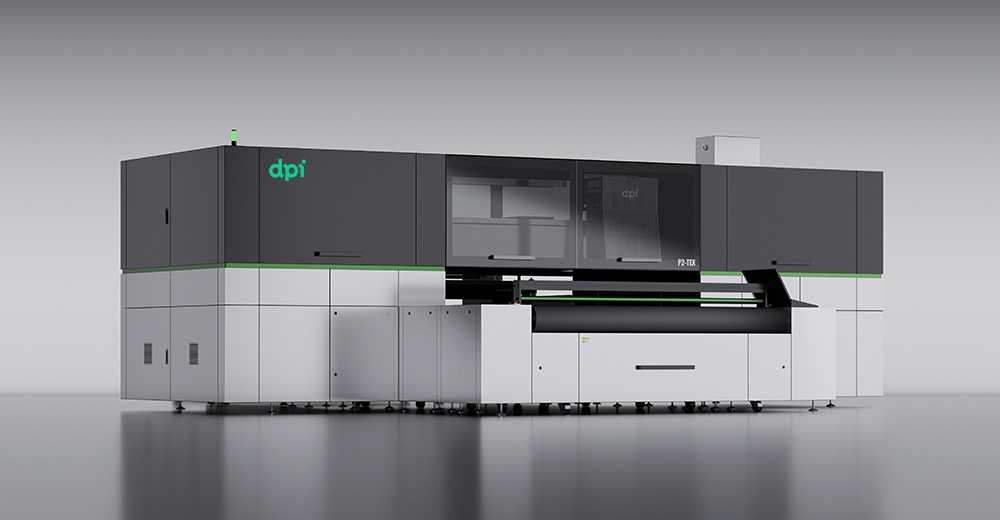

P2 Power Multi Pass Direct Printer

Equipped with up to 120 print heads and 8–12 flexible color channels, precisely meets wide-color-gamut needs.

Surpasses industry-standard production, 3200mm effective print width, Max daily output: 50,000㎡.

Boosts efficiency, streamlines delivery, Empowers large-scale, high-quality printing.

SUPPORTING A MAX PRINTING WIDTH OF 2000 MM
FITS DIVERSE PRODUCTION SCALES

SINGLE/DOUBLE ROLL PRINT MODES
FLEXIBLE, FITS DIVERSE PRODUCTION NEEDS

VARIABLE PRINT HEAD CONFIGS
MEETING DIVERSE PRINTING NEEDS

WIDE PATTERN COMPATIBILITY
RELIABLY HANDLES COMPLEX DESIGNS

DOUBLE BEAM DRIVE

ULTRA-WIDE COLOR GAMUT

FABRIC FEEDING SYSTEM

SELF-DEVELOPED PRINTING SOFTWARE

BELT WASHING SYSTEM

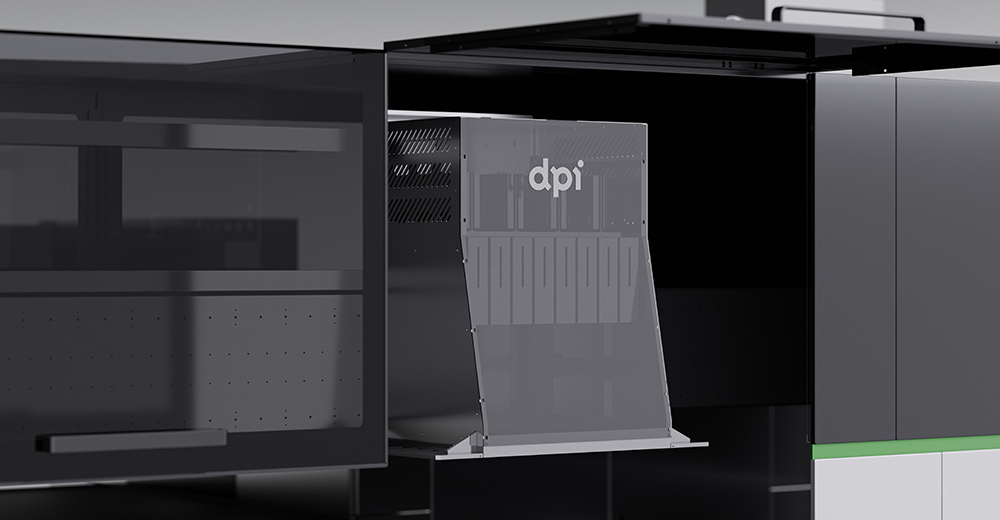

DOUBLE BEAM DRIVE

· Self-developed double beam & linear motor gantry drive ensures stable, precise output for consistent quality.
· Enables smooth carriage movement, easy print head maintenance, reducing costs & boosting efficiency.

ULTRA-WIDE COLOR GAMUT

· Max 12-color configuration with mirror-array printing tech, boosting coverage and productivity.
· Wider print range, aiding faster delivery to fit large-scale production needs.

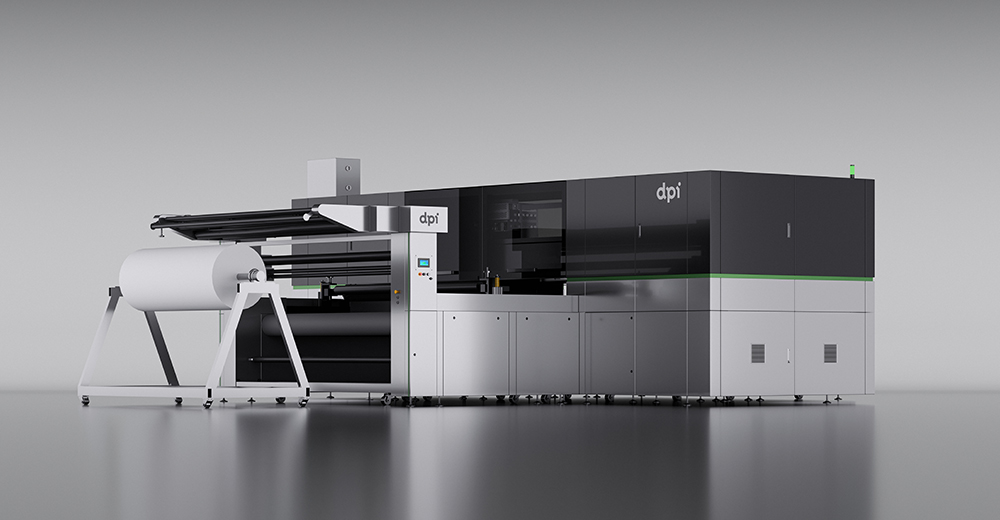

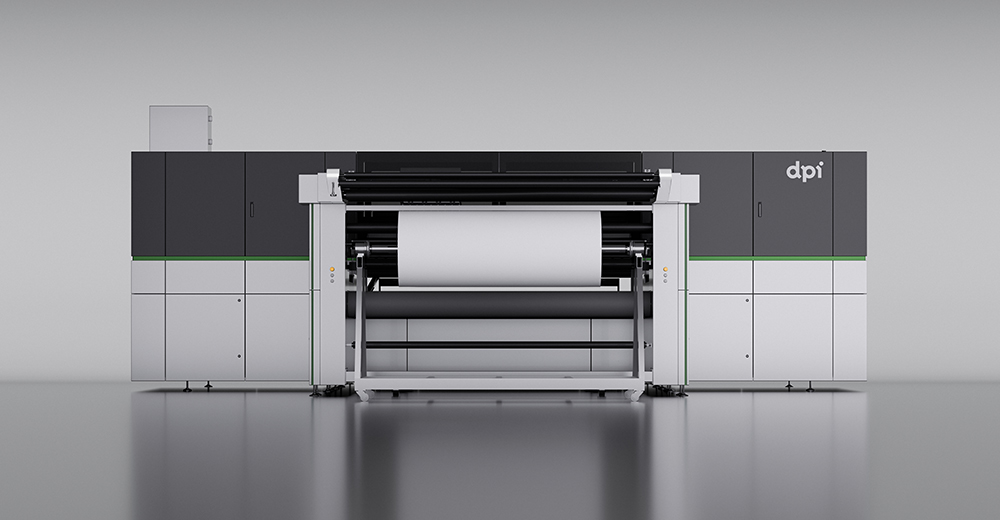

FABRIC FEEDING SYSTEM

· Single/multi-roll feeding system, fits diverse production needs.
· Optional expanding, centering & edge-blowing devices aid handling curled and stretchy fabrics, ensuring stable feeding.

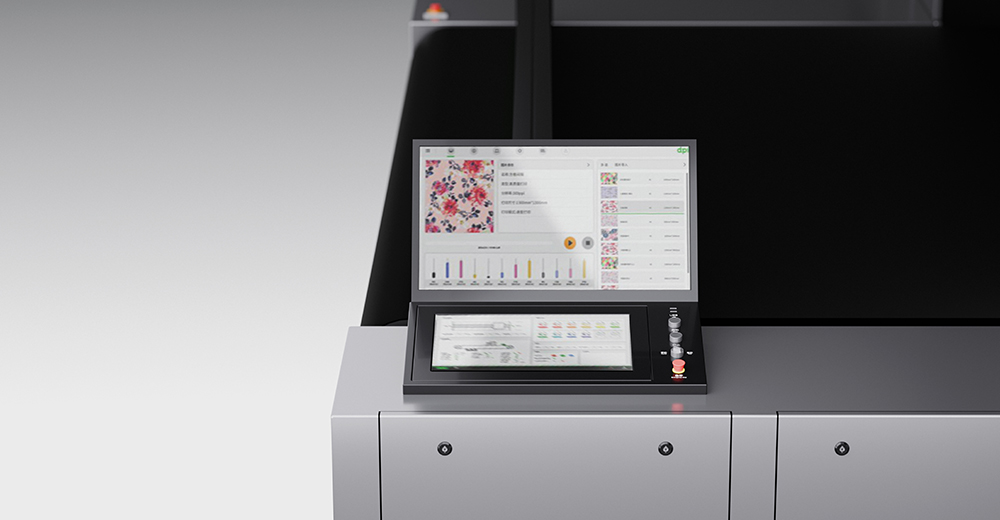

SELF-DEVELOPED PRINTING SOFTWARE

· User-friendly, adapting to diverse needs: One-click start and real-time production progress tracking.
· Exclusive feathering mode intelligently customizes files, enhancing natural edge transitions.

BELT WASHING SYSTEM

· Independent dual-tank design supports separate water intake/drainage for flexible cleaning process control.
· Dual sponge rollers integrate power & auto - squeezing, ensure cleaning efficiency & effect.

Technical Specification

Model	P2-64/P2-80/P2-120	P2 L-64/P2 L-80/P2 L-120	P2 XL-64/P2 XL-80/P2 XL-120
Max. printing width	2000 mm	2600 mm	3400 mm
Resolution	600~2400 dpi
Drop Volume	5~16 pL
No. of print head	64/80/120
Colors Channel	8~12
Fabrics	Various cotton, rayon, silk, polyester, etc.
Inks	Reactive, acid, disperse, pigment, etc.
